Product description

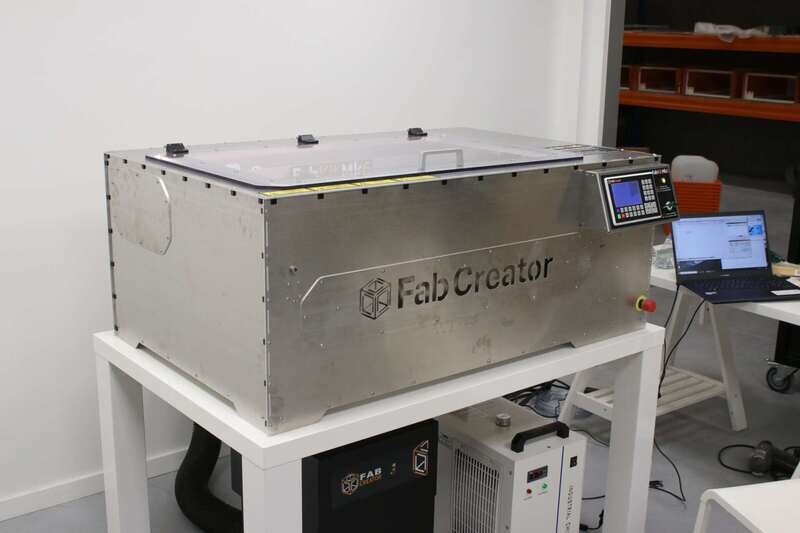

The worlds first professional CO2 laser kit. The FabKit offers an all in one package for those looking for a feature full laser cutter which they can build themselves. Building a machine by yourself is a fun experience which allows you to learn the inner workings of the machine, making you well versed for any future maintenance you may encounter during its many years of operation.

Product Features

• Clean cuts with detailed engravings thanks to a high quality 40W laser and optimal air delivery. (Upgradable to 75w)
• Stepper servos motors provide fast, and precise movement
• Moving tube, makes for easy alignment and more consistent power output.
• Professional machine, upgradable with larger compressors and active cooling for heavy frequent usage.
• Easy to use,
• DIY Kit, Easy to construct, fully tested electronics pre assembled.
• Easy Auto mechanical focus

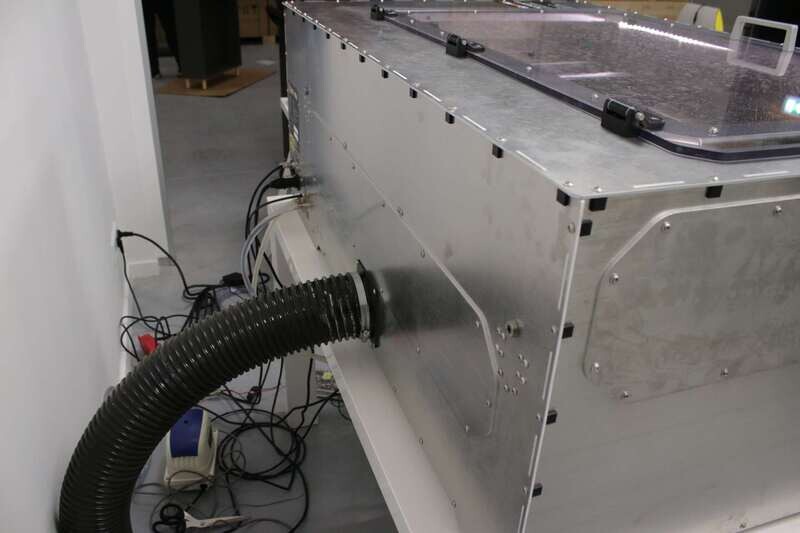

• Clean extraction, raised bed makes for optimal air flow
• Professional software from LightBurn
• Easy and safe access of all maintenance areas
• CE & Class 1 laser product

Included as standard

Technical Data

*Explanations

• A CO2 lasers wave length is 10.6μm a spot size varies depending on focal lens and quality of the laser tube and is typically around 100-300μm
• True speed values achievable for normal operations without degradation of quality.
  Other vendors will advertise theatrical speeds achievable only if the job allows for constant acceleration in a single vector or introduce significant wobble to your vectors.
• Dimensions may vary depending on the material due to kerf, however LightBurn can compensate with offsets.
• True Dpi is limitation of the spot size. For a CO2 laser the true max dpi will be around 300dpi for any system. However often you will see higher Dpi's. This creates overlapping spots and allows for more exposure of the material increasing detail for some materials. The software allows for DPIs of your choosing.
