FabCore Plus

The FabCore Plus is the assembled version of the FabKit Mk6 with all the upgrades!

All in for 8,000 Euros   exVAT

 Fab75w CO2 Laser

A superior beam quality allows the FabCore Plus to cut thicker, faster and cleaner than comparable power lasers!

Integrated controls

The FabCore Plus comes with a control interface allowing you to save files, load files and adjust speed and power.

Large Cutting Area & Motorised bed

A spacious work area of 800x500x130mm provides you with plenty of room to cut and engrave, the motorised z-axis allows for auto focus.

Safety & Security

Equipped with all the essential safety features to ensure your safety. The FabCore Plus is designed to be Class 1 Laser product.

Compact Design

Even with its relatively huge cutting area the FabCore Plus remains a compact machine with outer dimensions of 1266*816*503mm (W*D*H)

2 Year Warranty

The FabCore Plus comes with a 2 year component warranty as standard.*


FabCore Plus Included as standard

FabCore Plus Specifications

  • Stepper Servos

    High speed and torque stepper motors with integrated encoder and motor driver.

  • Interchangeable Lenses

    The FabCore Plus provides the option to switch between a variation of focal lengths and offset distances to ensure perfect results.

  • Easy To Use

    The FabCore Plus is designed to be used by all.

    With a simple control pannel you can jog, load files and cut all from the machine its self.


  • Industrial Quality

    All metal design, high quaility linear rails and 9mm Steel core HTD belt the FabCore Plus is designed to last.

  • LED Lighting

    Being able to see what going on inside your machine might seem like an obvious feature, however to our surprise LED lighting is not a common feature for CO2 lasers.

  • Plug and play

    The FabCore Plus arrives ready to go, just connect it up and get cutting!

  • Standard Operating Procedures

     A clear and concise check list is built in to the FabCore Plus, nicely reminding you to double check the important aspects of operating a CO2 laser

  • Sturdy Door

    An 8mm thick clear PC cover makes for a robust door, combined with a gas strut you don't have to worry about the door closing on your head!

  • Optimal Air Flow

    Removing the smoke generated from laser cutting is really important. The FabCore Plus is designed to have fast flowing air under the cutting grid which will quickly sweep away any smoke generated from the cutting process.

  • Easy to change laser tubes

    CO2 lasers are consumable eventually the laser will need changing. This is often a scary job for many users. With the FabCore Plus we have designed the tube to be as closed to plug and play as possible. Simply unscrew the power and water connection and slide out the old tube. The new tube comes with a new pre-aligned visible laser which can be used to easily align the mirrors.

  • Auto Focus

    The FabCore Plus has an auto focus sensor, simply load your material, jog the laser head over and click set focus. The machine will then set the perfect focal point.


  • Expandable

    Although not currently available the FabCore Plus has provisions a 4th axis rotary (Using the Y axis)

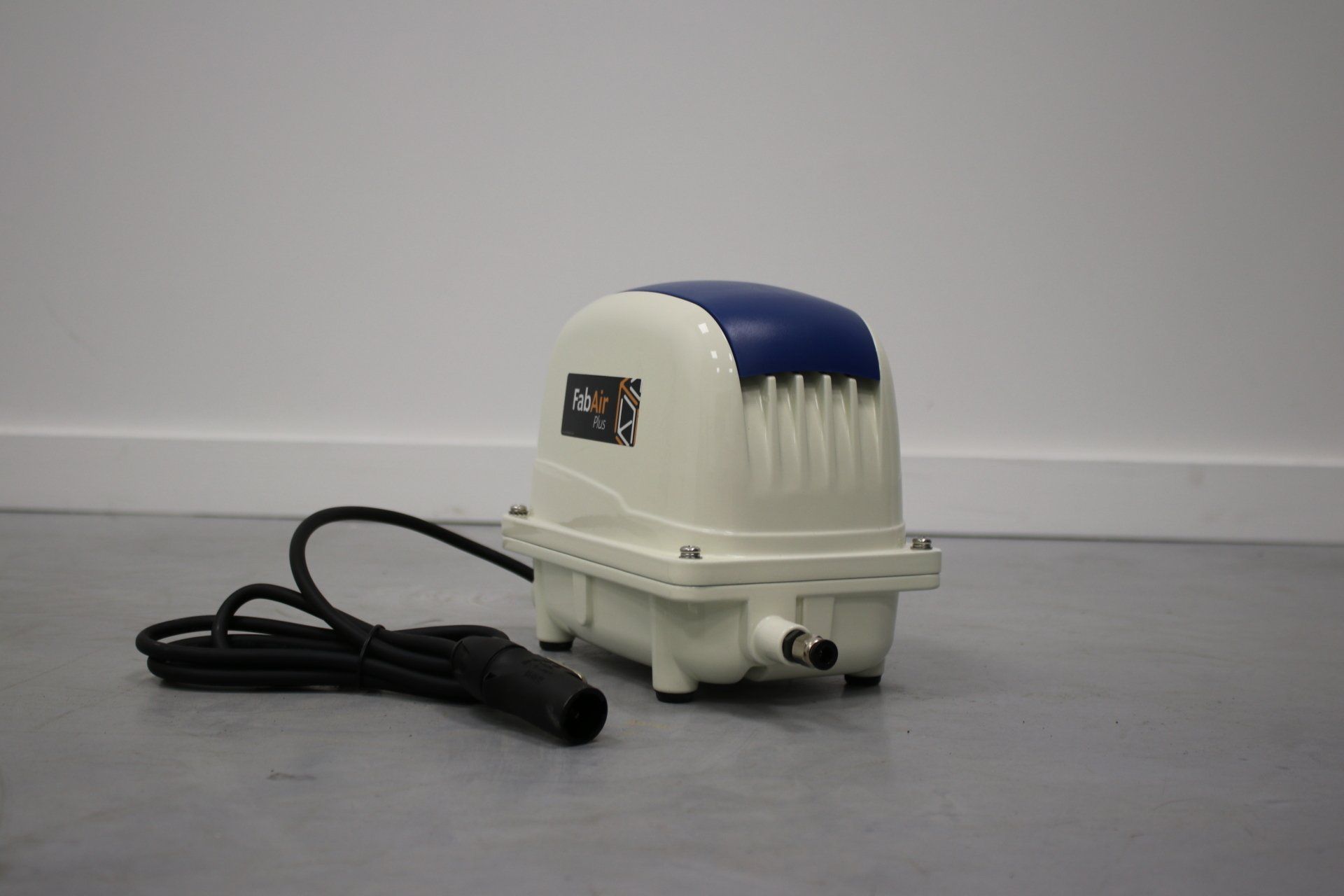

  • Quiet High Flow Compressor

    The FabCore Plus uses an ultra quiet constant flow compressor to provide high volume constant air flow to help with the cutting process and keep the optics clean. The compressor is also enabled/disabled with the cutting jobs to future help with noise reduction.

  • Class 1 Laser

    The FabCore Plus is a Class 1 laser product.

    Learn more about laser safety here

  • Integrated alignment laser

    The FabCore Plus integrates a visible red laser with the invisible 75W CO2 laser. This provides a visible path for the CO2 laser, making it easier to align the CO2 laser with your work piece.

  • Emergency Stop

    A mechanical E-Stop break power to the machine ensuring should something go wrong you always have a clear and straightforward way to shut down the machine.

  • Tri Colour Status Indicator

    The tri colour led continuously informs you of the laser's current status,

    Red; The laser cannot operate because the door is open or the chiller is off.

    Green; The laser is ready to operate. The door is closed and chiller is running.

    Orange; The laser is currently firing. This will flicker on and off as and when the laser fires.


  • Dual Interlocks

    To ensure the laser cannot fire with the door open it is important to monitor the state of the door: open or closed. Like all FabCreator machines the FabCore Plus use two sensors to check the door is closed.

  • Key Switch

    While not a requirement for a Class 1 lasers we like to incorporate key switches into FabCreator machines in order to provide an extra level of control over the machine.

    Laser cutters are tools not toys, improper use can lead to fire, disabling and removing the key allows everything apart from the laser to work. A great feature for community spaces and schools who might not want unauthorised use of the machine.

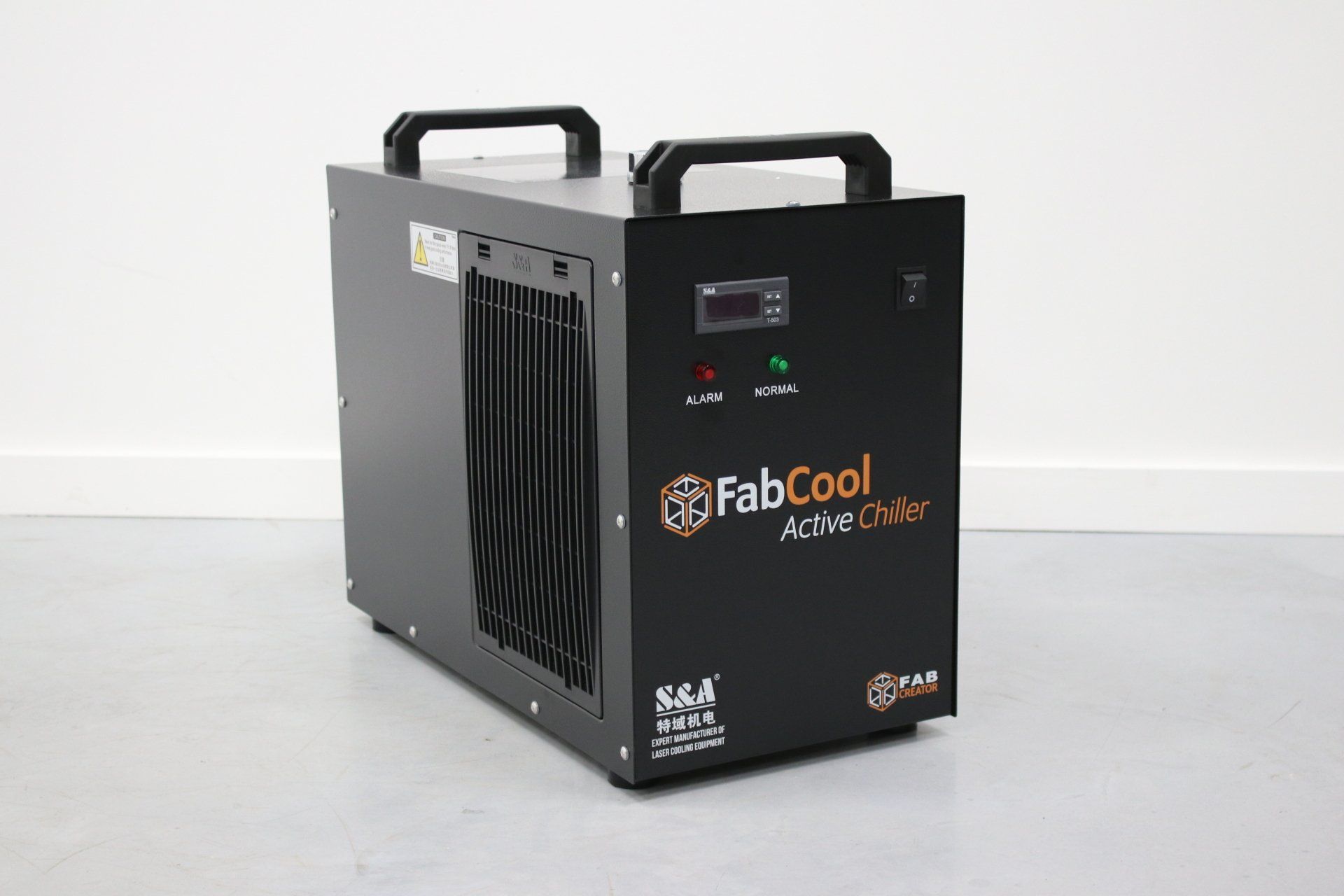

  • Chiller Interlock

    DC CO2 lasers need to be cooled, running a laser without cooling will damage the laser, reducing its lifespan. To ensure the laser cannot be run without the chiller the chiller is incorporated into the safety interlock system.

FabCore Plus Optional Extras

    • FabKit FAQ

    • Class 1 Laser?

      The FabCore Plus comes with two lasers the 75W CO2 laser we use for cutting and engraving and a <0.4mW visible laser which is aligned with the invisible CO2 laser at the source, This means we have a very close visible representation of where the invisible laser will hit.

    • What does the warranty cover?

      The 2 year warranty covers everything apart from  consumables.

      Consumables include mirrors, lenses and the laser tube.


      The Fab40W has a 6 month warranty with the passive chiller or 12 months warranty with the active chiller.


      Warranty does not cover shipping cost.

    • Do I need to pay tax ?(VAT)

      Vat registered businesses located within the EU but outside the Netherlands are not required to pay us Dutch VAT.



      Customers located in the EFTA counties are not required to pay us  Dutch VAT, however you will have to pay the applicable import duties in addition to your nation's vat rate.



      Dutch registered business and non vat registered customers located within the EU are required to pay the Dutch rate of 21% VAT.



      If you have any questions feel free to contact us at Sales@fabcreator.com

    • Where do you ship?

      We ship our products throughout Europe EEA and EFTA.


      The costs vary but the closer to the Netherlands the cheaper it is.


      If you are located outside these economic zones but want a FabCreator Laser contact us at: sales@fabcreator.com

    • LightBurn Software Subscription

      The FabCore comes with a licence to LightBurn.

      The licence lasts for 365 days, after which it will continue to work but you will no longer receive updates. A renewal is around 30 euros


    • Made to Order

      As a manufacturer we make our machine to order.

      This means it is not possible to refund or return your FabCreator laser.
