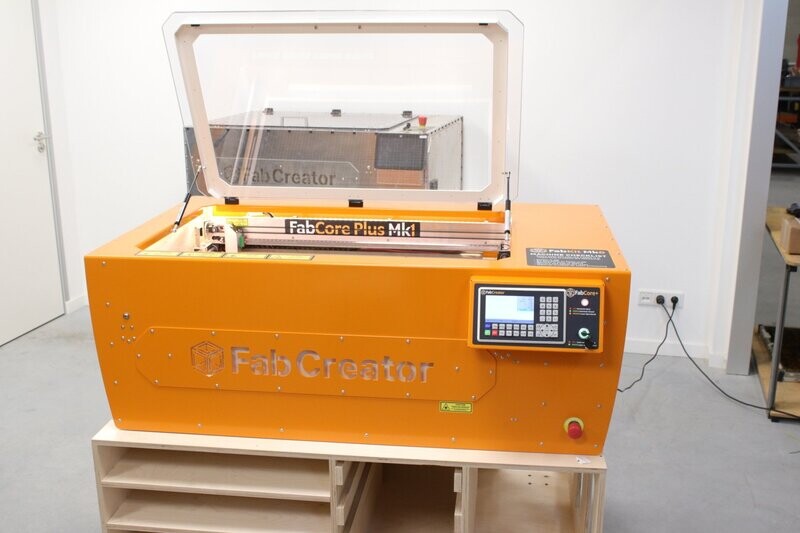

While for some the thrill of a DIY is great, others just want a machine which plugs in and works. The FabCore Plus has all the great features of the FabKit but ready to go!
Available as standard with the Fab75w tube, active chiller and 1.1kw extractor, the FabCore Plus is a power house of cutting while remaining as compact as the FabKit.
Product Features
Clean cuts with detailed engravings thanks to a high quality 75W laser and optimal air delivery.
Professional machine, equipped with larger compressors and active cooling for heavy frequent usage.
Stepper servos motors provide fast and precise movement.
Fixed moving tube means little to no chance of misalignment.
Easy to use, by anyone.
Plug & Play, just add power!
Easy auto mechanical focus.
Clean Extraction, raised bed makes for optimal air flow.
A CO2 lasers wave length is 10.6μm a spot size varies depending on focal lens and quality of the laser tube and is typically around 100-300μm
True speed values achievable for normal operations without degradation of quality. Other vendors will advertise theatrical speeds achievable only if the job allows for constant acceleration in a single vector or introduce significant wobble to your vectors.
Dimensions may vary depending on the material due to kerf, however LightBurn can compensate with offsets.
True Dpi is limitation of the spot size. For a CO2 laser the true max dpi will be around 300dpi for any system. However often you will see higher Dpi's. This creates overlapping spots and allows for more exposure of the material increasing detail for some materials. The software allows for DPIs of your choosing.
